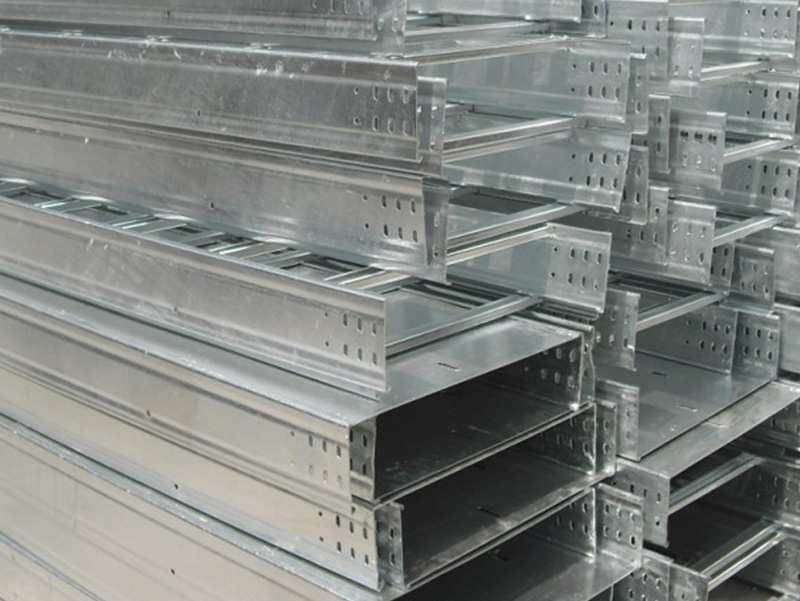

鍍鋅電纜橋架是一種常見的電力工程配套材料，用于支撐和保護電纜。正確安裝鍍鋅電纜橋架可以提高電纜系統的性和可靠性。以下是鍍鋅電纜橋架的安裝步驟及注意事項：

Galvanized cable tray is a common supporting material for power engineering, used to support and protect cables. Proper installation of galvanized cable trays can improve the safety and reliability of cable systems. The following are the installation steps and precautions for galvanized cable trays:

一、安裝前準備工作：

1、 Preparation before installation:

1. 確定安裝位置：根據電纜系統的需求和布局設計確定電纜橋架的安裝位置。

1. Determine the installation position: Determine the installation position of the cable tray based on the requirements and layout design of the cable system.

2. 準備工具和材料：包括螺絲刀、螺絲批、錘子、鋸子、鍍鋅電纜橋架、連接件、螺栓和螺母等。

2. Prepare tools and materials: including screwdrivers, screwdrivers, hammers, saws, galvanized cable trays, connectors, bolts and nuts, etc.

二、 安裝步驟：

2、 Installation steps:

1. 進行現場勘測：根據實際情況，確定電纜橋架的長度、寬度和高度等尺寸參數。

1. Conduct on-site survey: Based on the actual situation, determine the size parameters such as length, width, and height of the cable tray.

2. 安裝支撐架：根據勘測結果和布局設計，先安裝電纜橋架的支撐架。支撐架可以采用鋼木結構、壁掛式或地腳式支撐方式。

2. Installation of support frame: Based on the survey results and layout design, install the support frame for the cable tray first. The support frame can adopt steel and wood structures, wall mounted or foot mounted support methods.

3. 組裝電纜橋架：根據電纜系統的布局設計，將鍍鋅電纜橋架按要求連接起來。注意保持橋架的水平和垂直度，確保橋架在安裝過程中不會變形。

3. Assembly of cable tray: According to the layout design of the cable system, connect the galvanized cable tray as required. Pay attention to maintaining the level and verticality of the bridge to ensure that it does not deform during installation.

4. 連接固定件：使用螺栓和螺母將橋架連接固定在支撐架上。固定件的數量和位置要根據實際情況和布局設計確定。

4. Connection fixing parts: Use bolts and nuts to connect and fix the bridge to the support frame. The quantity and position of fixed parts should be determined based on the actual situation and layout design.

5. 安裝電纜支架：根據電纜系統的布局和需要，安裝電纜支架在橋架上。電纜支架的數量和間距要根據電纜的長度和規格來確定。

5. Install cable support: Install the cable support on the bridge according to the layout and needs of the cable system. The number and spacing of cable supports should be determined based on the length and specifications of the cables.

6. 安裝電纜槽蓋板：根據實際需要，選擇合適的電纜槽蓋板，將其安裝在電纜橋架上，以保護電纜不受外界干擾和損害。

6. Install cable tray cover plate: According to actual needs, select a suitable cable tray cover plate and install it on the cable tray to protect the cable from external interference and damage.

7. 進行調試和驗收：安裝完成后，對電纜橋架進行調試和驗收，確保其安裝質量和功能完好。

7. Conduct debugging and acceptance: After installation, conduct debugging and acceptance on the cable tray to ensure its installation quality and functional integrity.

三、注意事項：

3、 Precautions:

1. ：在安裝過程中，要遵守操作規程和操作規范，確保工作人員的人身。

1. Safety first: During the installation process, it is necessary to comply with safety operating procedures and specifications to ensure the personal safety of workers.

2. 合理布局：根據實際情況和電纜系統的需要，合理布局電纜橋架和電纜橋架支撐架，確保電纜橋架的穩定和可靠性。

2. Reasonable layout: According to the actual situation and the needs of the cable system, reasonably layout the cable tray and cable tray support frame to ensure the stability and reliability of the cable tray.

3. 選用材料：選用的鍍鋅電纜橋架和配套材料，以確保其耐腐蝕性和使用期限。

3. Choose high-quality materials: Choose high-quality galvanized cable trays and supporting materials to ensure their corrosion resistance and service life.

4. 細節處理：在安裝過程中，要注意細節處理，比如橋架的水平和垂直度、電纜支架的數量和間距、固定件的牢固性等。

4. Detail handling: During the installation process, attention should be paid to detail handling, such as the level and verticality of the bridge, the number and spacing of cable supports, and the firmness of fixing components.

5. 節約材料：在安裝過程中要合理使用材料，避免浪費，減少成本，提益。

5. Material conservation: During the installation process, materials should be used reasonably to avoid waste, reduce costs, and improve efficiency.

6. 進行驗收：在安裝完成后，要進行調試和驗收，確保電纜橋架的正常使用。

6. Acceptance: After installation is completed, debugging and acceptance should be carried out to ensure the normal use of the cable tray.
